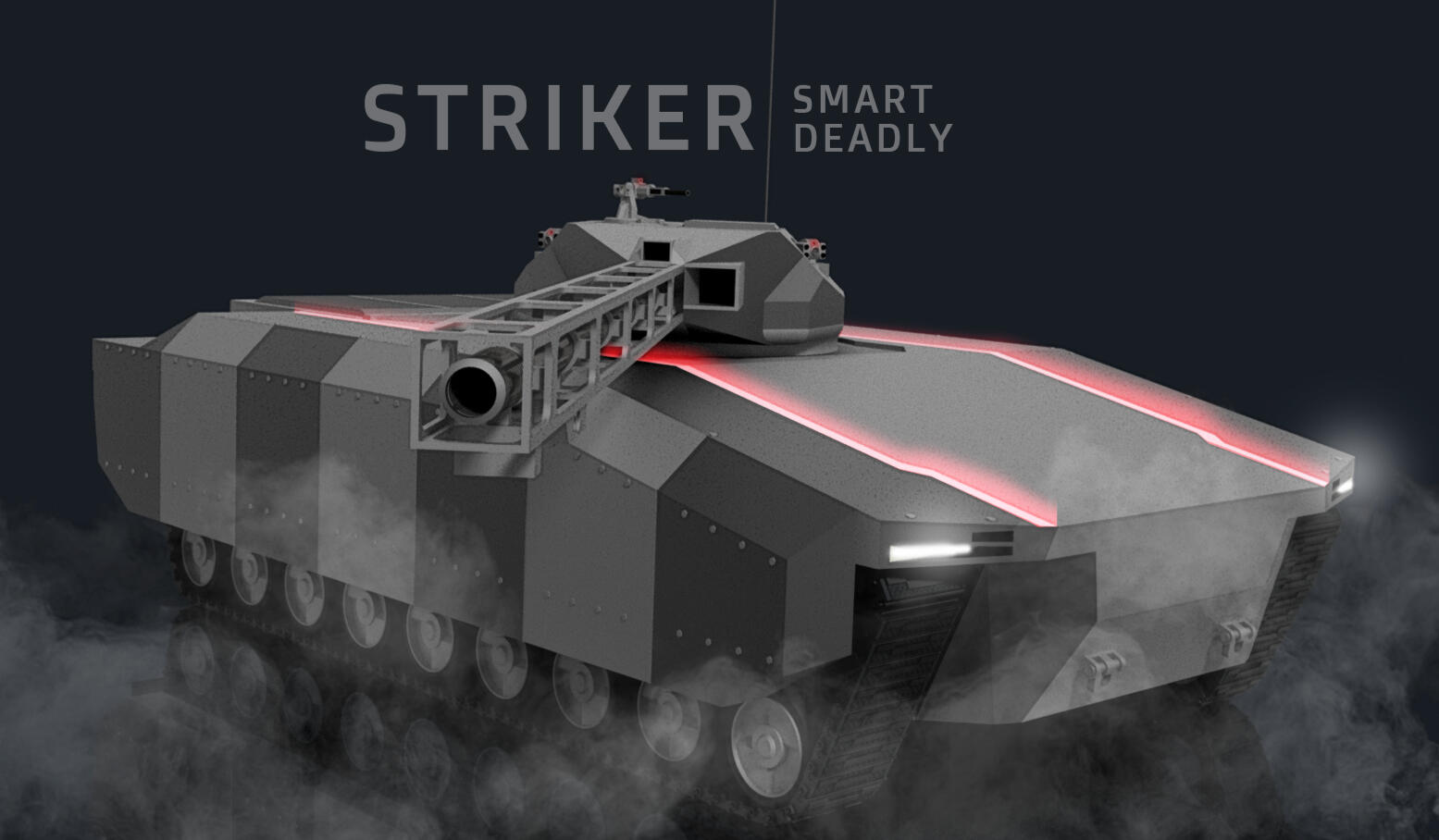

STRIKER
Tough and resilient built to perform, STRIKER is the boldest variation of the MOD 10 platform. Supporting a 122mm main cannon and a smart targeting 50.cal machine gun mounted on top of the turret. Multiple choices of countermeasures in both soft and hard kill variations, with dedicated smoke screen pods dispensing from either side of the main turret. Comes in both manned and unmanned options with modular side panels for light and heavy combat environments. CLICK HERE for new updated design

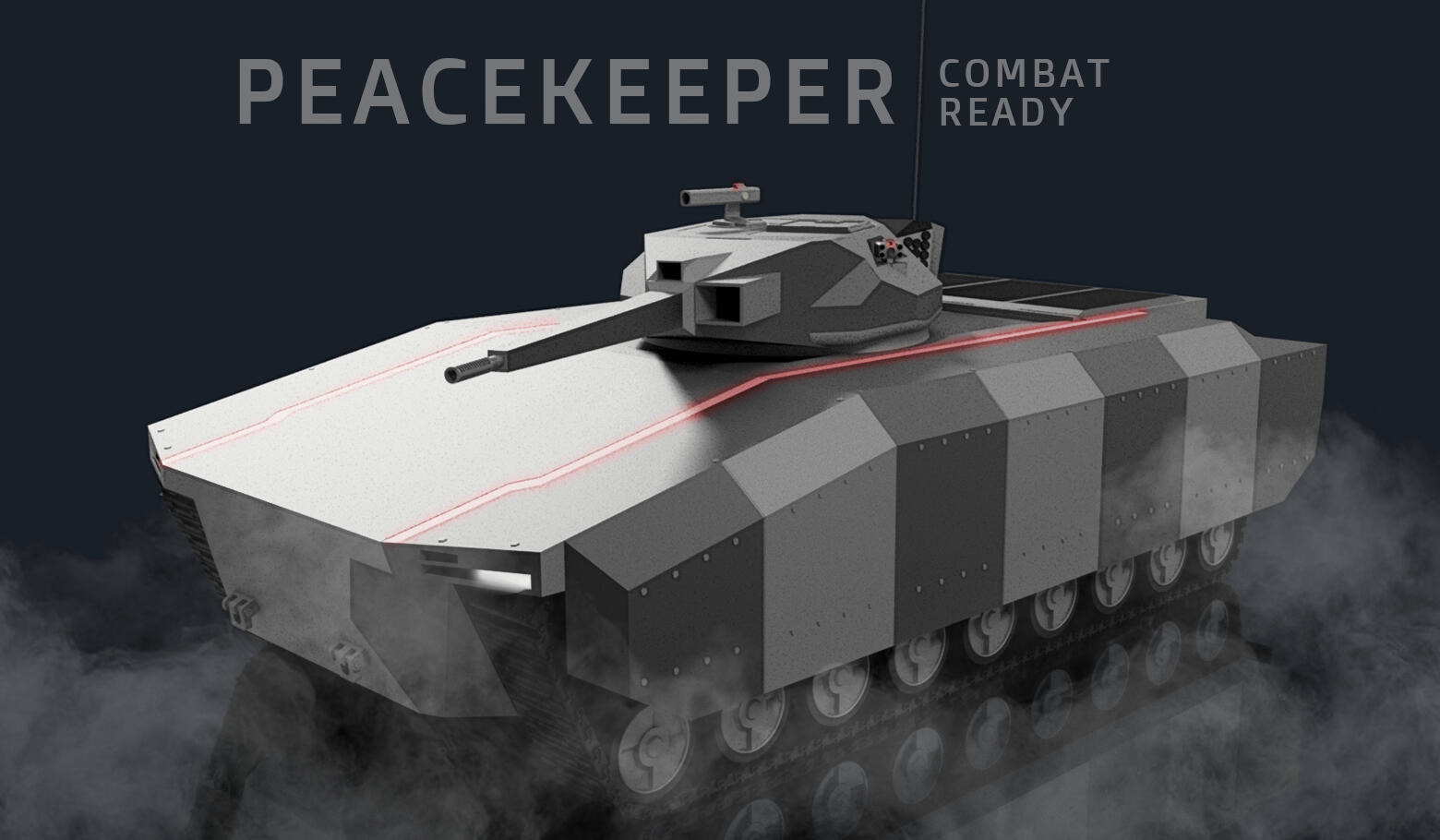

PEACEKEEPER
Perfect for any environment, PEACEKEEPER is a hybrid configuration perfect for troop support. It has a versatile weapon configuration, including both a 50mm autocannon and an ATGM-guided rocket system. Comes included with all of the same Countermeasures as the much more armed striker variant.

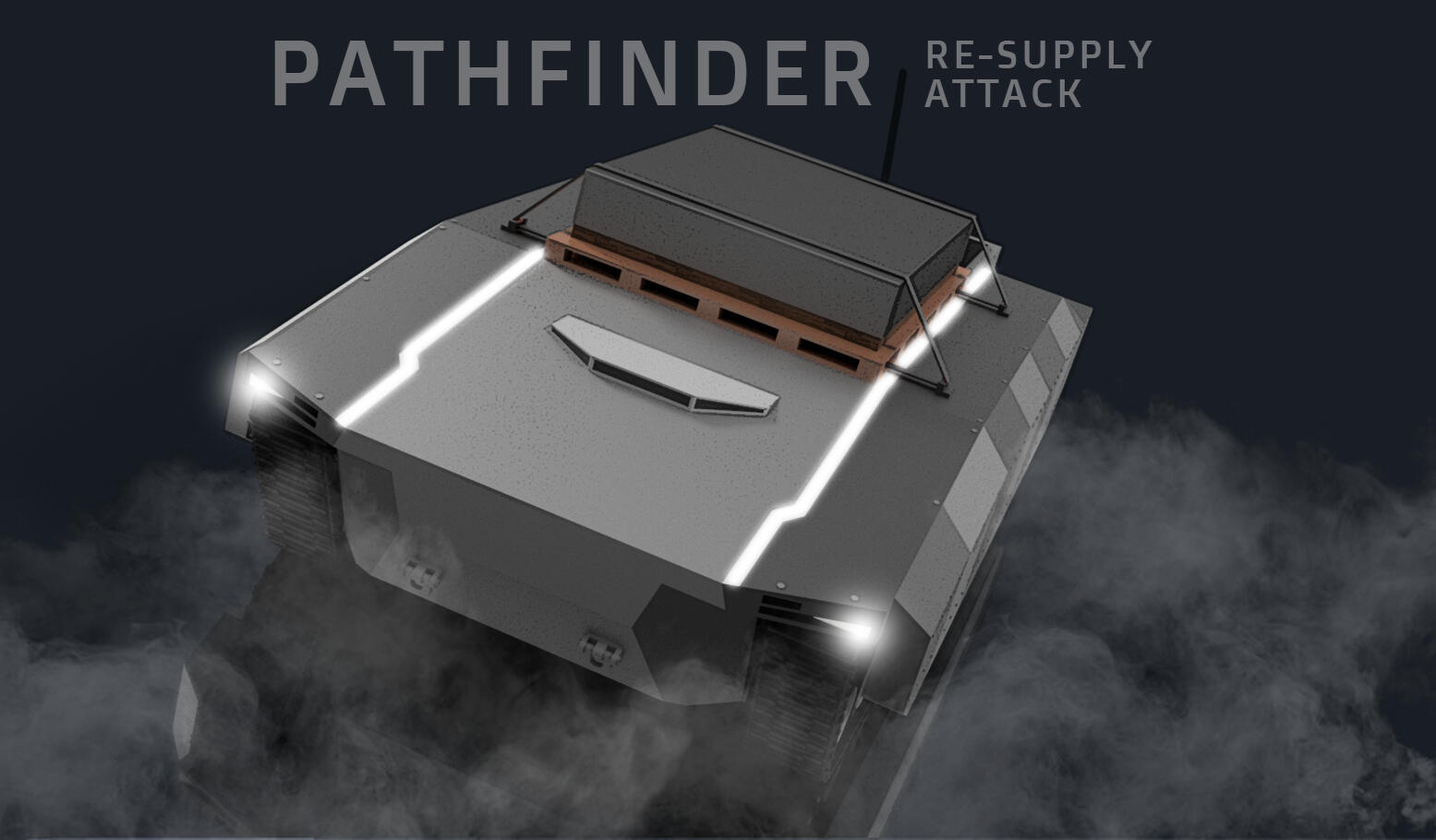

PATHFINDER
The backbone, PATHFINDER is a supply-oriented variant of the MOD 10. Stripped of all of its weapon systems this variant focuses on adding with transporting supplies between missions. By completely removing the top turret this allowed for a large flat surface on which cargo can be secured down to. Alternatively, a crane system can be installed on top of the PATHFINDER to aid with vehicle recovery and bridge construction.

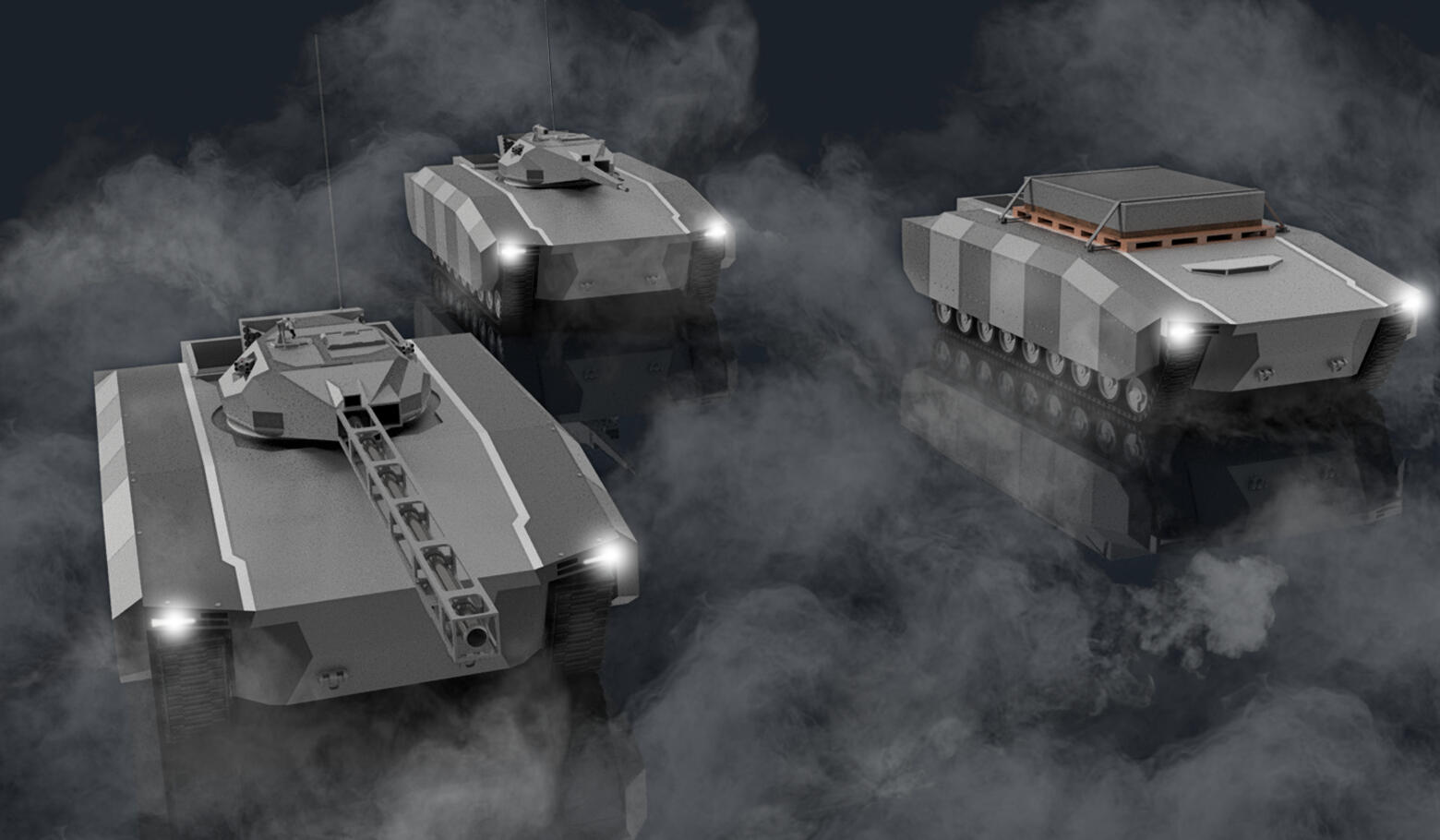

The MOD 10 Platform
Name MOD 10 is derived from the word modular with every number following it signifying its variant from with variants such as PEACEKEEPER bearing the name MOD 11 and PATHFINDER MOD 12

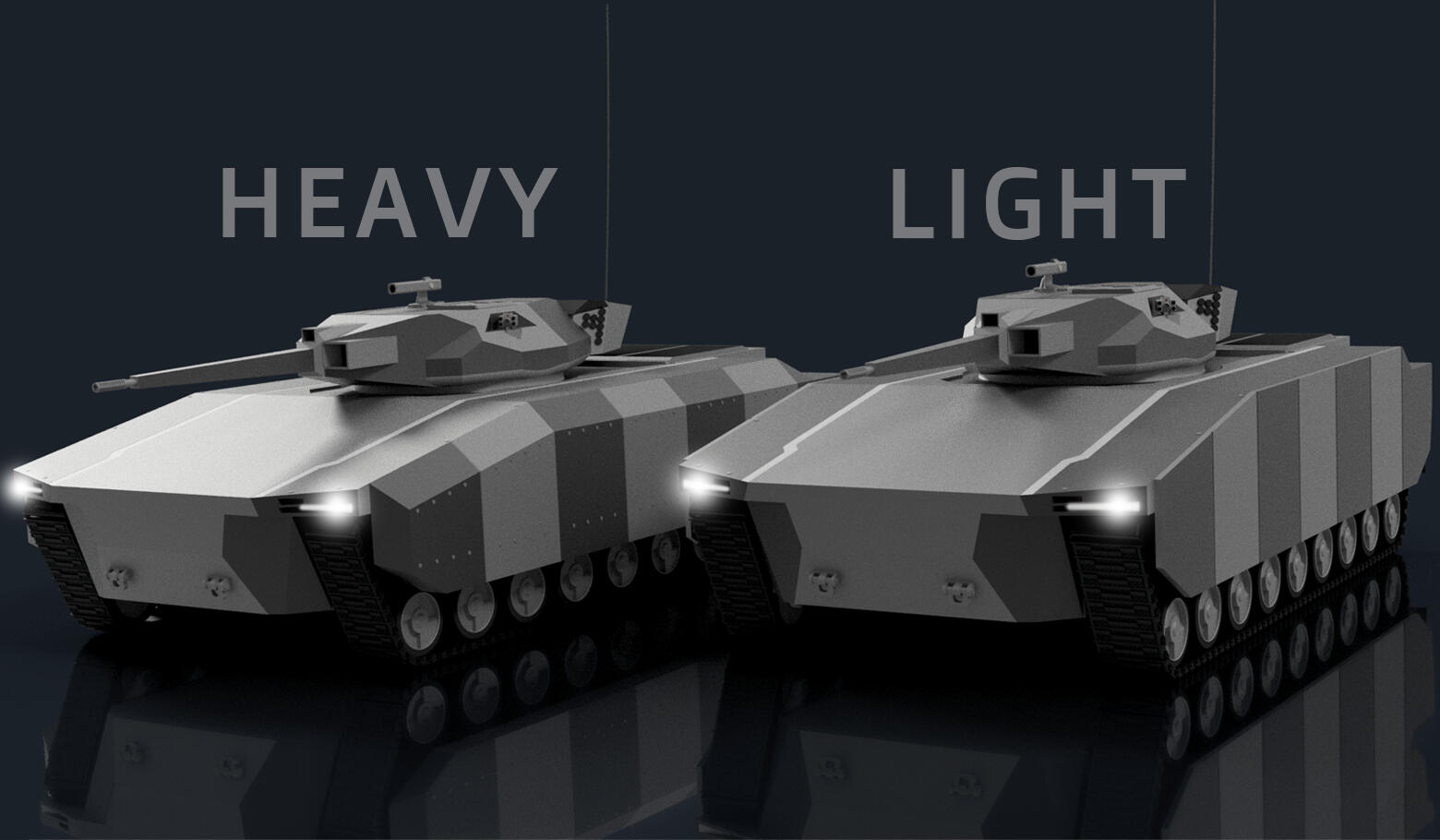

Lightweight armour option
The MOD 10 has an option between a 50mm armour panel and a much thicker composite armour side panel which also provides extra storage space if the composite pads inside are removed.

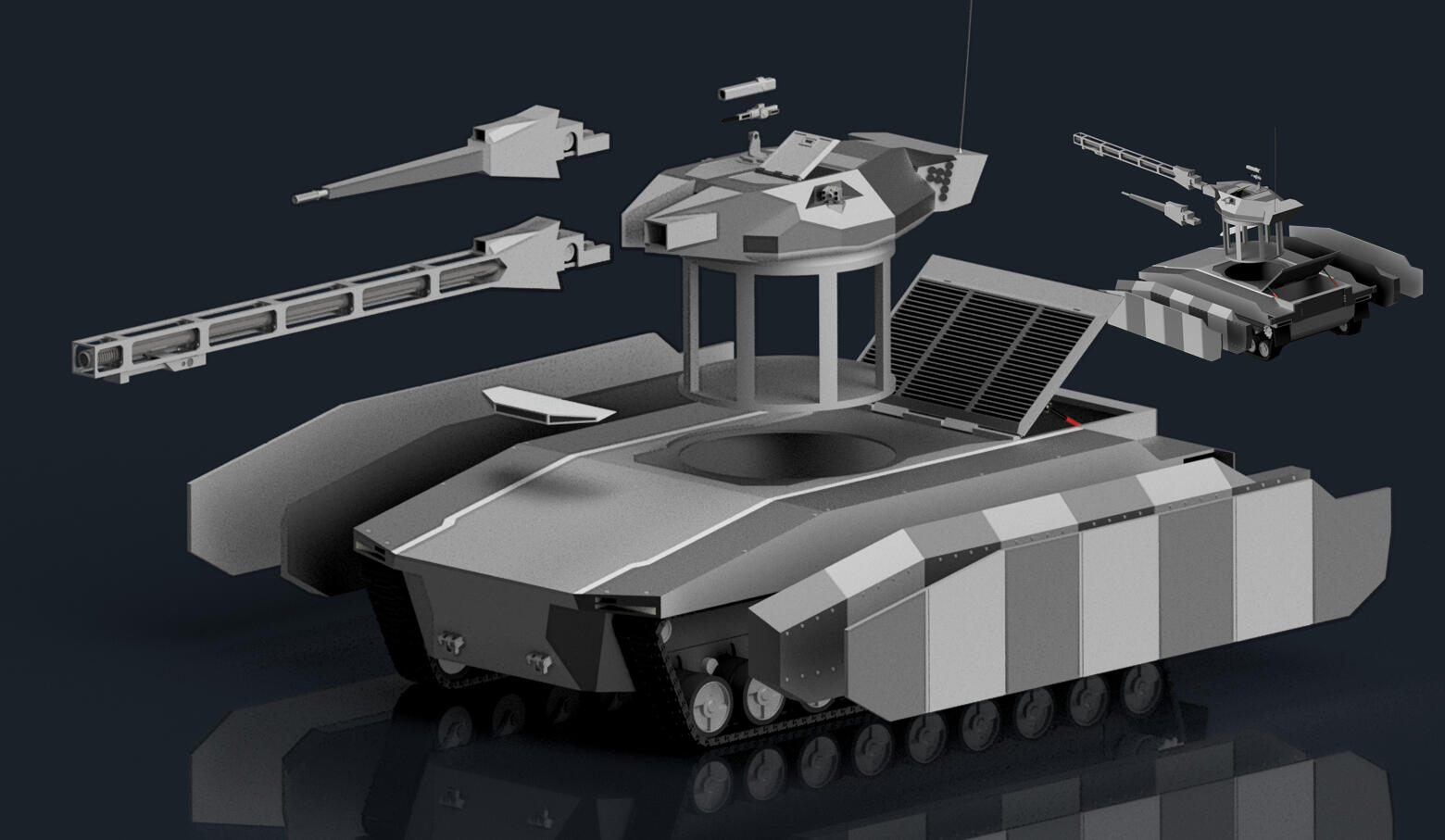

Modular Design
The MOD 10 was designed to be a modular platform this means, many different parts can be interchanged to allow for different variations of the MOD 10 to be put together within a short time. With man components such as the primary and secondary weapon systems being interchangeable with different turret modules. The ability to attach many different anchor points to the main haul also allows for the ability to attach external storage boxes for expeditions requiring specialist equipment that can not be stored inside the MOD 10.

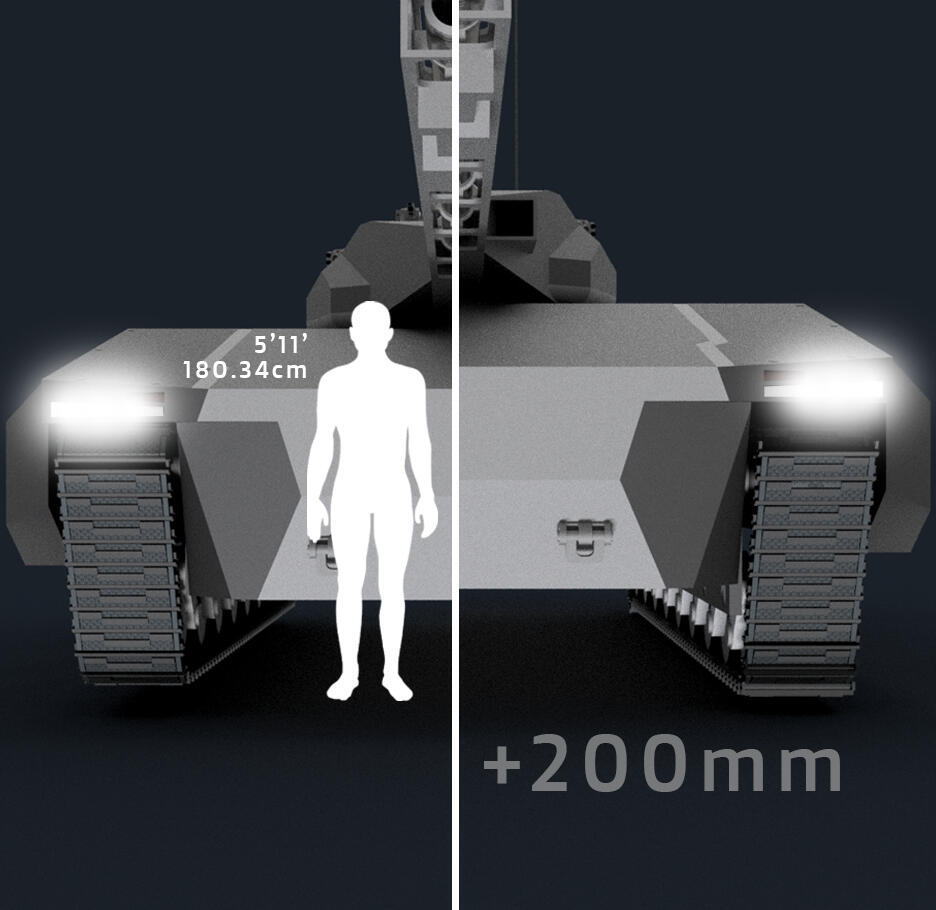

Suspension
Adjustable suspension allows for the MOD 10 to vary its own riding height anywhere from -100mm to +200mm

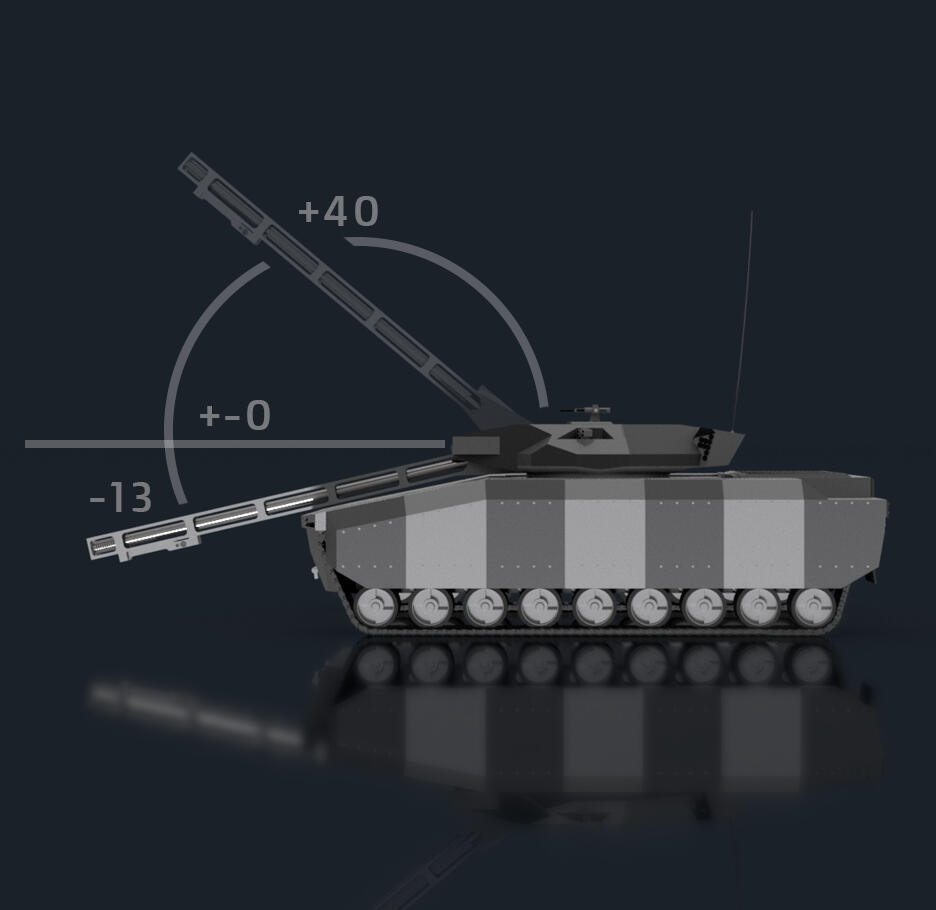

Shooting stance
From a frontal position, the depression angle on the main cannon of the STRIKER variant is -13 all the way up to +40 degrees

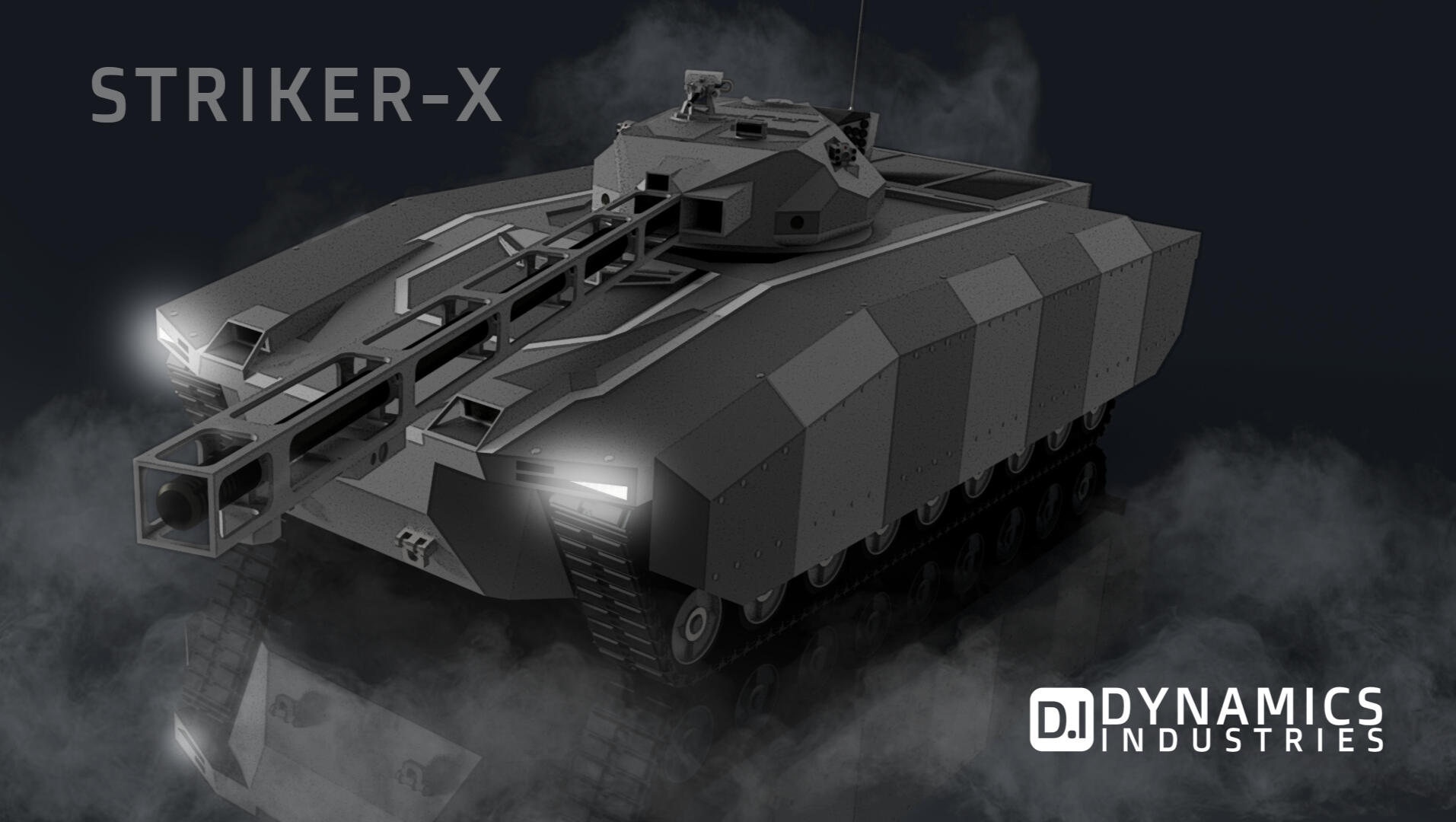

DEVELOPMENT UPDATES - STRIKER X
